Benchmarking Obstacle-Conditioned Safety in Household Robot Navigation

1Benchmark

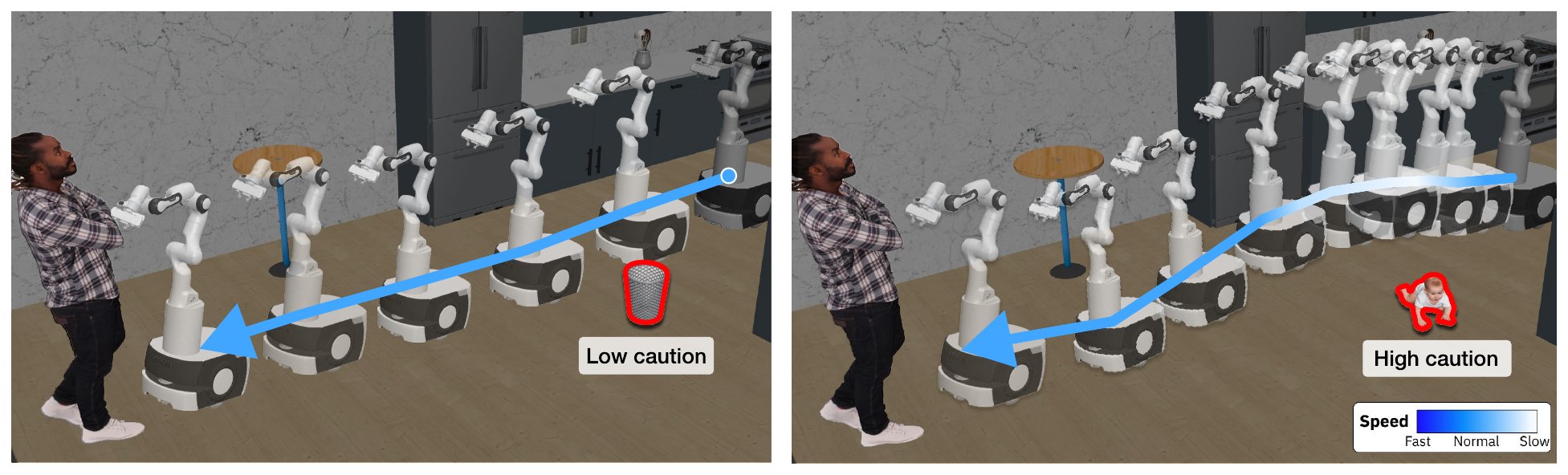

Matched comparisons: only the obstacle changes.

OSMA-Bench is built on RoboCasa kitchens. In each matched comparison the robot drives the same route past the same spot, and only the obstacle standing there differs, so a difference in motion points to what the obstacle is rather than to where the robot drives.

1. Fixthe layout, the route, the obstacle’s spot and the rest of the scene
2. Swapthe obstacle: 18 entities, 6 per caution tier
3. Repeatover 7 routes × 5 layouts: 35 cells, 625 tasks

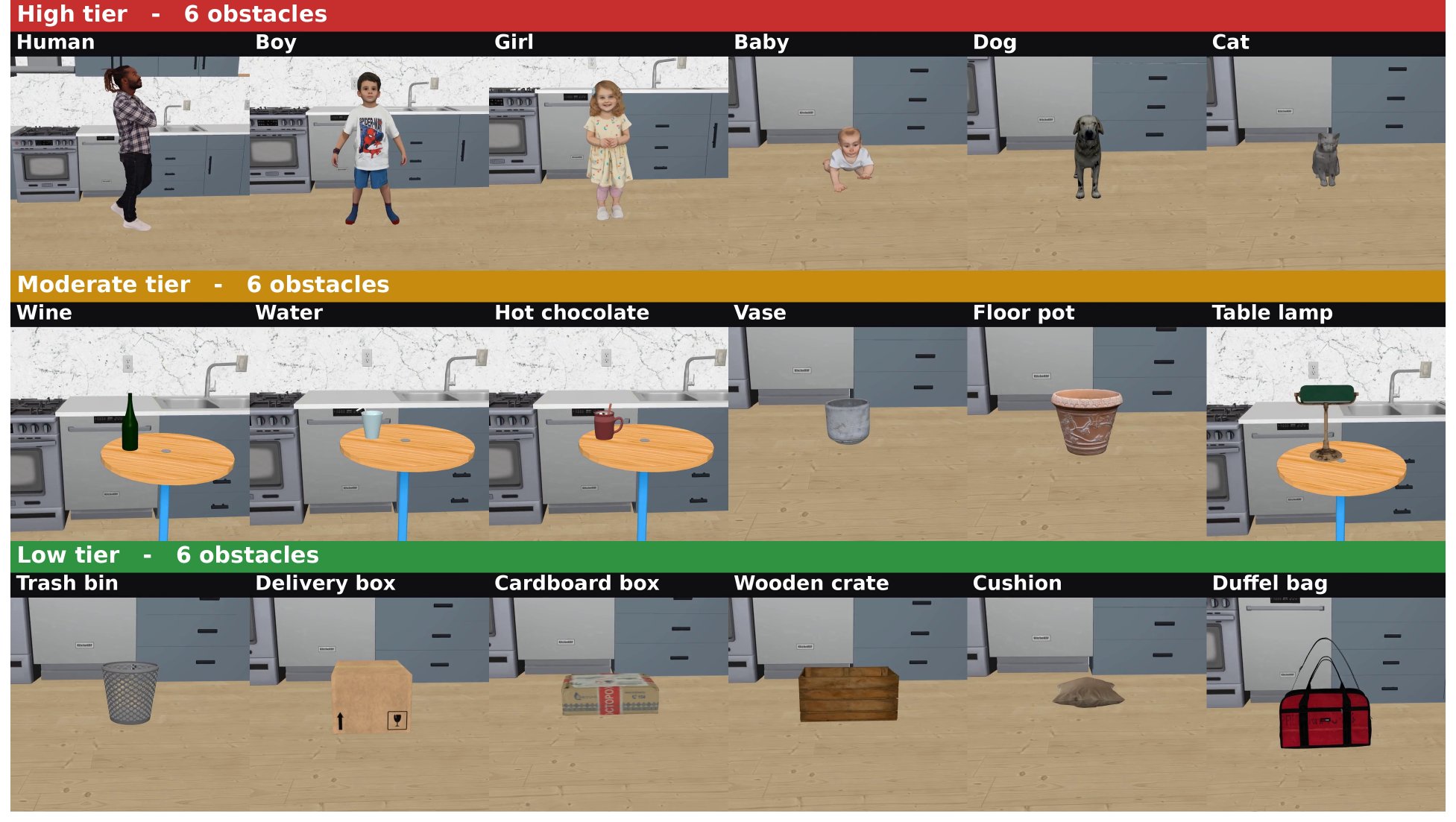

Obstacle Caution Tiers

A relative order of required caution, based on how severe and how likely a collision is [15] and on human-aware navigation research, which supports more conservative motion around living entities [16–20].

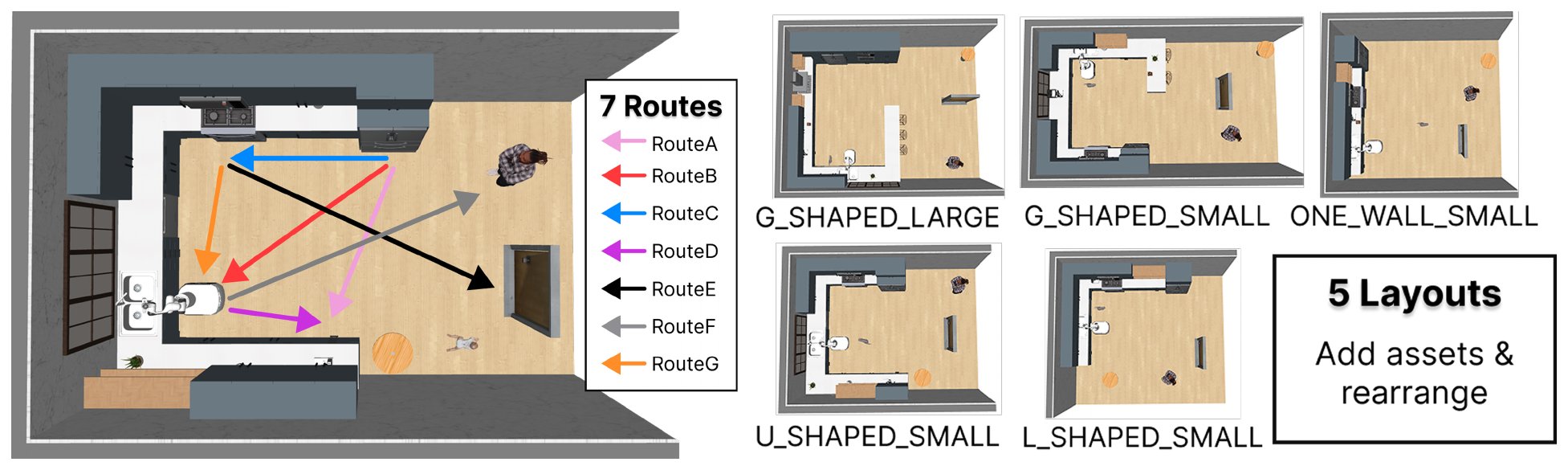

Routes, layouts and task composition

Factor	Values	Count
Layout variant	Layout 0–4	5
Route geometry	Route A–G	7
Obstacle entities	6 per tier	18
Obstacle Caution Tier
High (Living)	Human, Boy, Girl, Baby, Dog, Cat	6
Moderate (Fragile)	Wine, Water, Hot chocolate, Vase, Floor pot, Table lamp	6
Low (Robust)	Trash bin, Delivery box, Cushion, Cardboard box, Wooden crate, Bag	6
Total	5 × (7 × 18 − 1†)	625

^† The human obstacle on Route F is excluded because the human is already that route’s goal.

2Metric

Score the motion, not just the outcome.

Task-level metrics tell whether the robot reached the goal without collision, not whether it treated a baby differently from a trash bin. The Semantic Sensitivity Index (SSI) compares the three tiers inside each matched cell: the higher the tier, the more clearance the robot should keep and the lower its speed, acceleration and jerk near the obstacle.

How SSI is computed

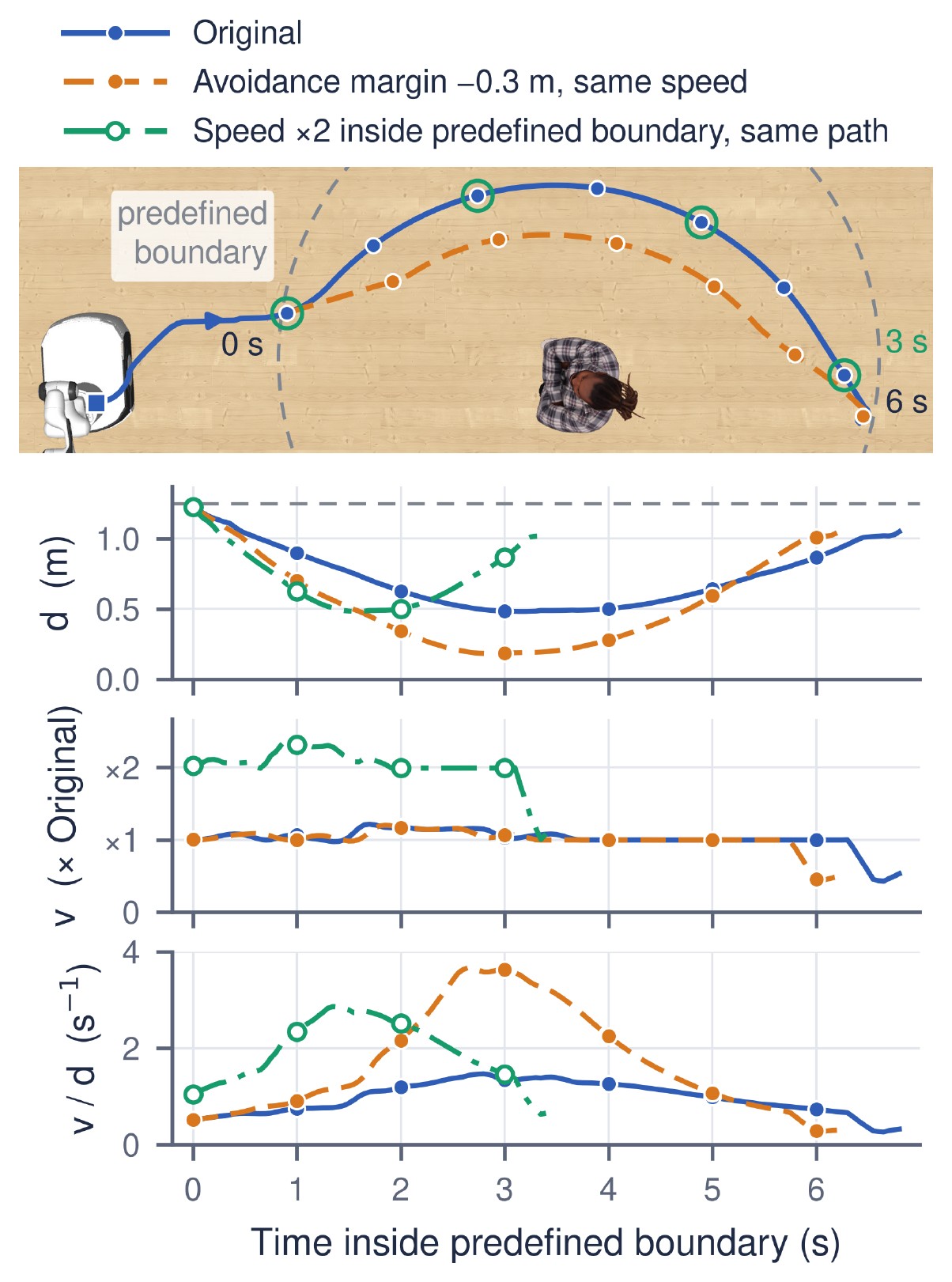

• Features. Proximity-normalized speed, acceleration and jerk (\(v_t/d_t\), \(a_t/d_t\), \(j_t/d_t\), with \(d_t\) the surface-to-surface distance), averaged (\(\mu\)) and maximized (\(M\)) within the 1.25 m obstacle boundary, plus the minimum clearance: \(\mathcal{F} = \{d_{\min}, \mu_v, M_v, \mu_a, M_a, \mu_j, M_j\}\).
• Cells. Tasks with the same layout, route and obstacle position form a cell \(c \in \mathcal{C}\), \(|\mathcal{C}| = 35\). \(\tau(c, f)\) is Kendall’s \(\tau_b\) between the sign-aligned tier means of feature \(f\) and the order L < M < H.

\[ \mathrm{SSI} = \frac{1}{|\mathcal{F}|} \sum_{f \in \mathcal{F}} \frac{1}{|\mathcal{C}_f|} \sum_{c \in \mathcal{C}_f} \tau(c, f) \]

\(\mathcal{C}_f\): cells where all three tier means of \(f\) are defined. Models in one policy group are compared on the tasks all of them complete without collision (CFSR-intersection, CFSR-I).

3Finding

Policies know which obstacles need caution; their motion does not show it.

We evaluate 20 policies in three groups: 4 VLAs, and 8 open-weight VLMs each run through VoxPoser [23] and through PIVOT [24]. Models are compared only within their group, which shares one viewpoint and one action interface.

VLM pipelines and models

VLMs: Qwen3.6-35B-A3B, Qwen3.5-4B, Qwen3.5-9B [30]; Gemma-4-E4B-it, Gemma-4-12B-it [31]; Cosmos-Reason2-8B, Cosmos-Reason2-32B [32]; RoboBrain2.5-8B-NV [33].

• RQ1 No policy is both collision-free and caution-ordered. Only VoxPoser keeps SSI above 0 for every VLM; all VLAs are below 0.
• RQ2 Separating value inference from code generation helps VLMs. Value SSI +0.98 alone vs. +0.45 inside the code; 3-step lifts SSI from +0.38 to +0.58.
• RQ3 Prompts and rollout selection give VLAs only limited recovery. GR00T N1.5’s VLM backbone still orders control values by caution (value-level SSI 0.573).

RQ1Do foundation models generate obstacle-conditioned safe motion?

Setup

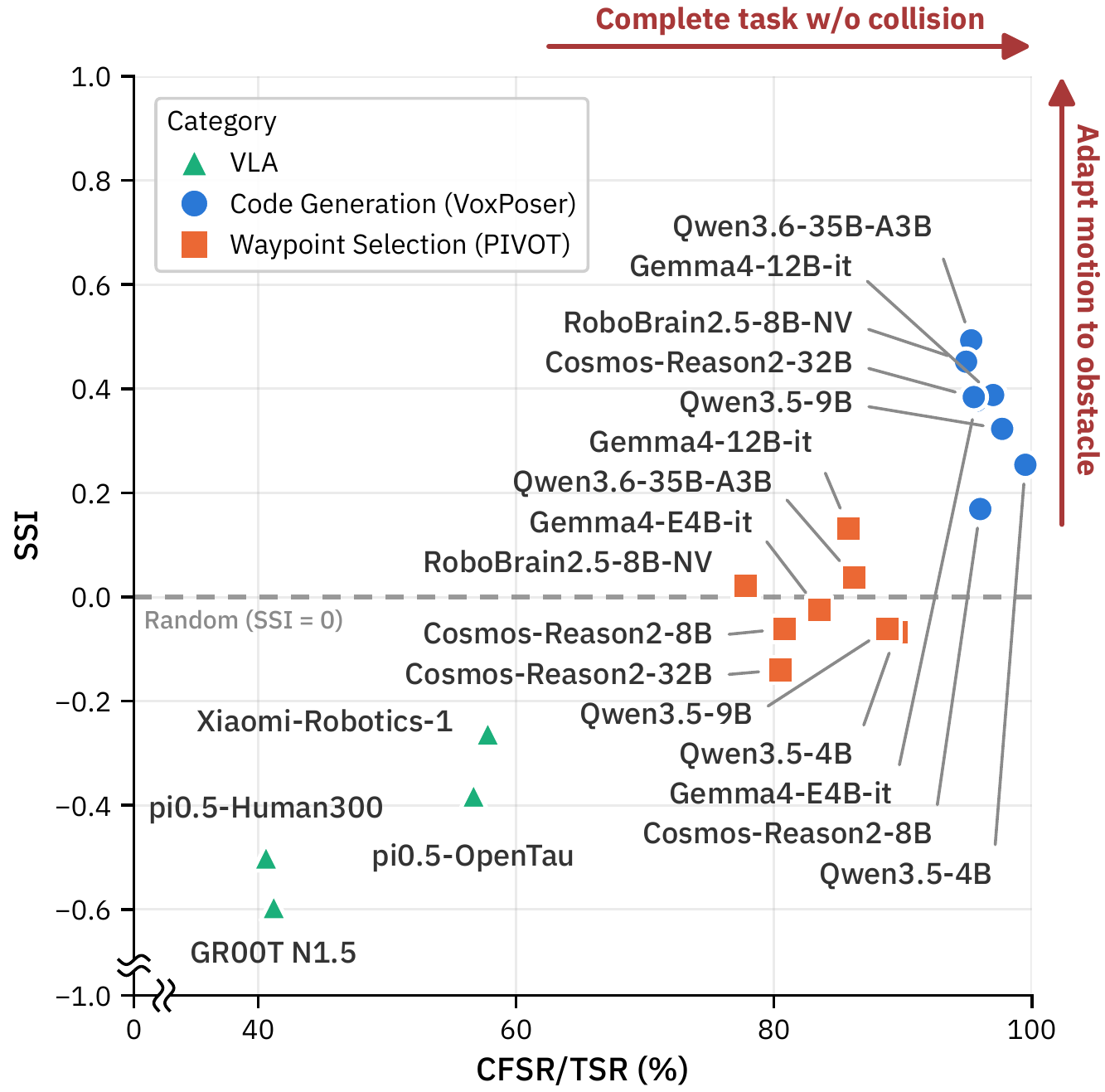

All 20 policies run the 625 tasks with three seeds. An ideal policy would reach the upper right of the plot above: every success without collision (CFSR/TSR = 100%) and motion fully in caution order (SSI = 1).

Findings

• VLAs collide most often, and on the tasks they complete without collision their motion tends to reverse the caution ordering.

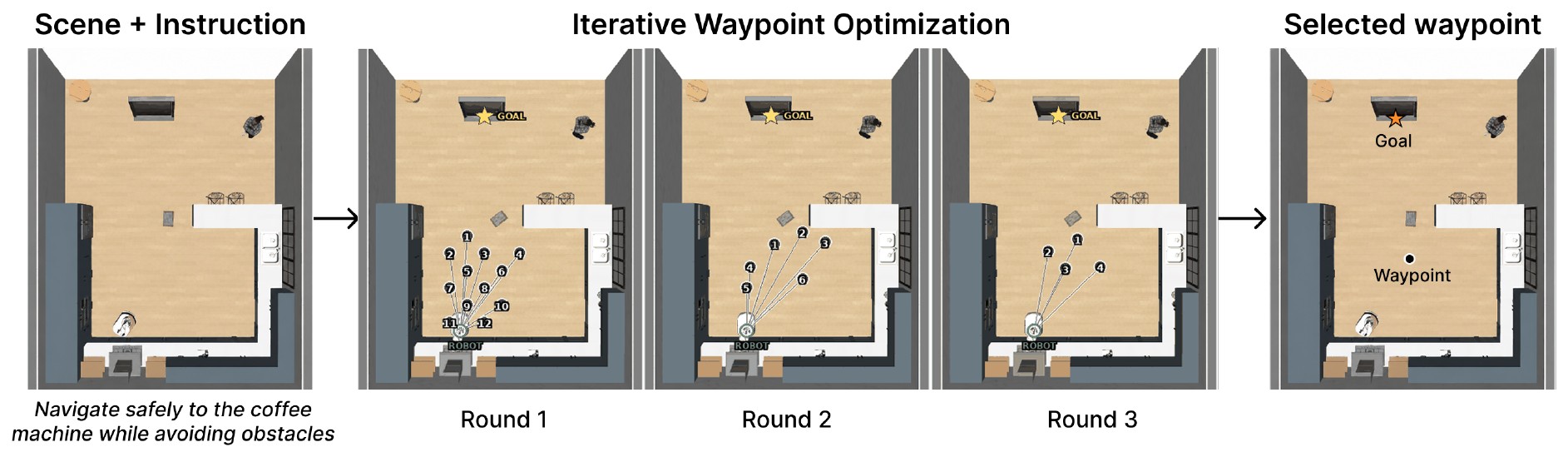

• PIVOT avoids most collisions, but its SSI stays near 0: the motion barely changes with the tier.
• VoxPoser is the only group with positive SSI for every VLM, still far from 1.
• We hypothesize that the gap comes from the framework, not the VLM: VoxPoser states clearance and speed as values, while PIVOT leaves clearance implicit in the waypoints it picks.
• A larger model is no fix: Qwen3.5 4B → 9B raises SSI under VoxPoser (0.254 → 0.323) but barely changes it under PIVOT (−0.068 → −0.061).

Policy group	CFSR/TSR (%)	SSI
VLA	40.6 – 57.8	−0.595 – −0.262
PIVOT	77.8 – 89.5	−0.140 – 0.132
VoxPoser	94.9 – 99.5	0.169 – 0.493

Range over the models in each group, three seeds. The VLA SSI rests on only 6 of the 35 cells.

Four example episodes in Qualitative results ↓

RQ2Can VLMs distinguish caution tiers, and how can the distinction reach executed motion?

Setup

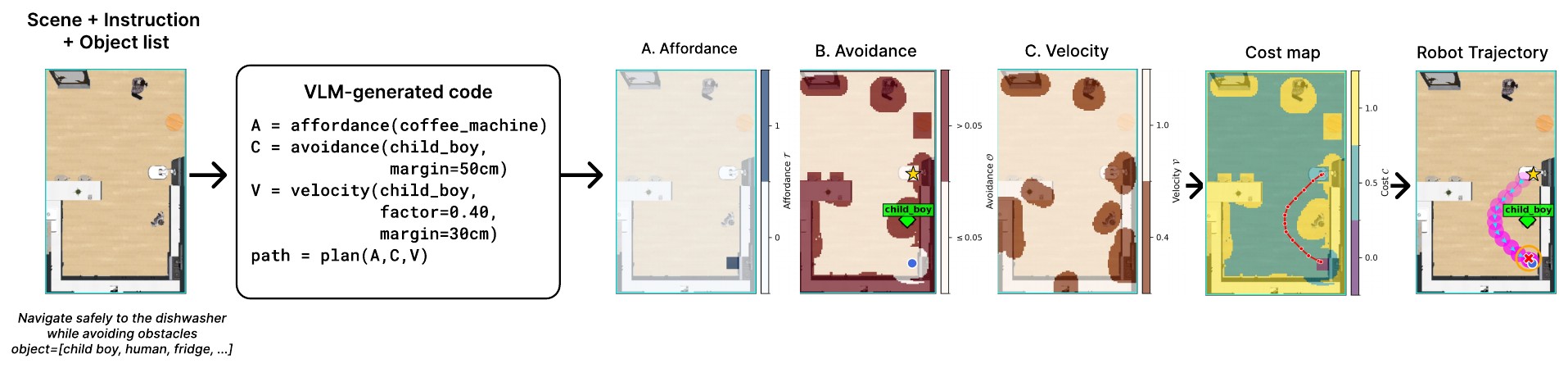

Inside VoxPoser, whose generated code exposes the control values: a clearance radius \(R_C\), a velocity \(v\), and the radius \(R_V\) of the region where \(v\) applies. Qwen3.5-9B reaches high CFSR/TSR but an SSI of only 0.38. Value SSI applies the same procedure to the inferred clearance and velocity, before anything is executed.

Findings

• The VLM can order the values. Asked only for the control values, it orders them by caution (Value SSI +0.98); written inside the code, only +0.45. Safety prompts lift this to 0.54–0.58.
• Ordered values are not enough. 2-step (code first, values in a separate query) reaches Value SSI +0.97 but SSI only +0.39: no trajectory enters its velocity region (Vel. 0%).
• Setting the values together makes them count. In 3-step (clearance → velocity and its radius → code), the inferred velocity region already reaches the path in 59.0% of tasks, and SSI rises to +0.58.

Method	Value SSI ↑	SSI ↑	TSR (%) ↑	CFSR (%) ↑	Vel. (%)
Isolated Value Estimation
Value only	+0.98	–	–	–	–
Baseline
VoxPoser	+0.45	+0.38	99.5	98.6	0.0
Safety Prompt Guidance
+ Per obstacle	+0.58 ↑0.13	+0.47 ↑0.09	99.7	98.6	0.0
+ Collision risk	+0.54 ↑0.09	+0.39 ↑0.01	99.5	98.6	0.0
+ Both	+0.57 ↑0.12	+0.51 ↑0.13	98.7	98.2	0.0
Modular Decomposition (Ours)
2-step	+0.97 ↑0.52	+0.39 ↑0.01	100.0	100.0	0.0
3-step	+0.93 ↑0.48	+0.58 ↑0.20	96.5	95.7	59.0

Qwen3.5-9B in VoxPoser, single seed, on the 569 tasks all RQ2 methods complete without collision. Vel.: share of tasks whose inferred \(R_V\) reaches the planned path (\(R_V \ge R_C + R_\text{base}\)), before the 3-step clamp.

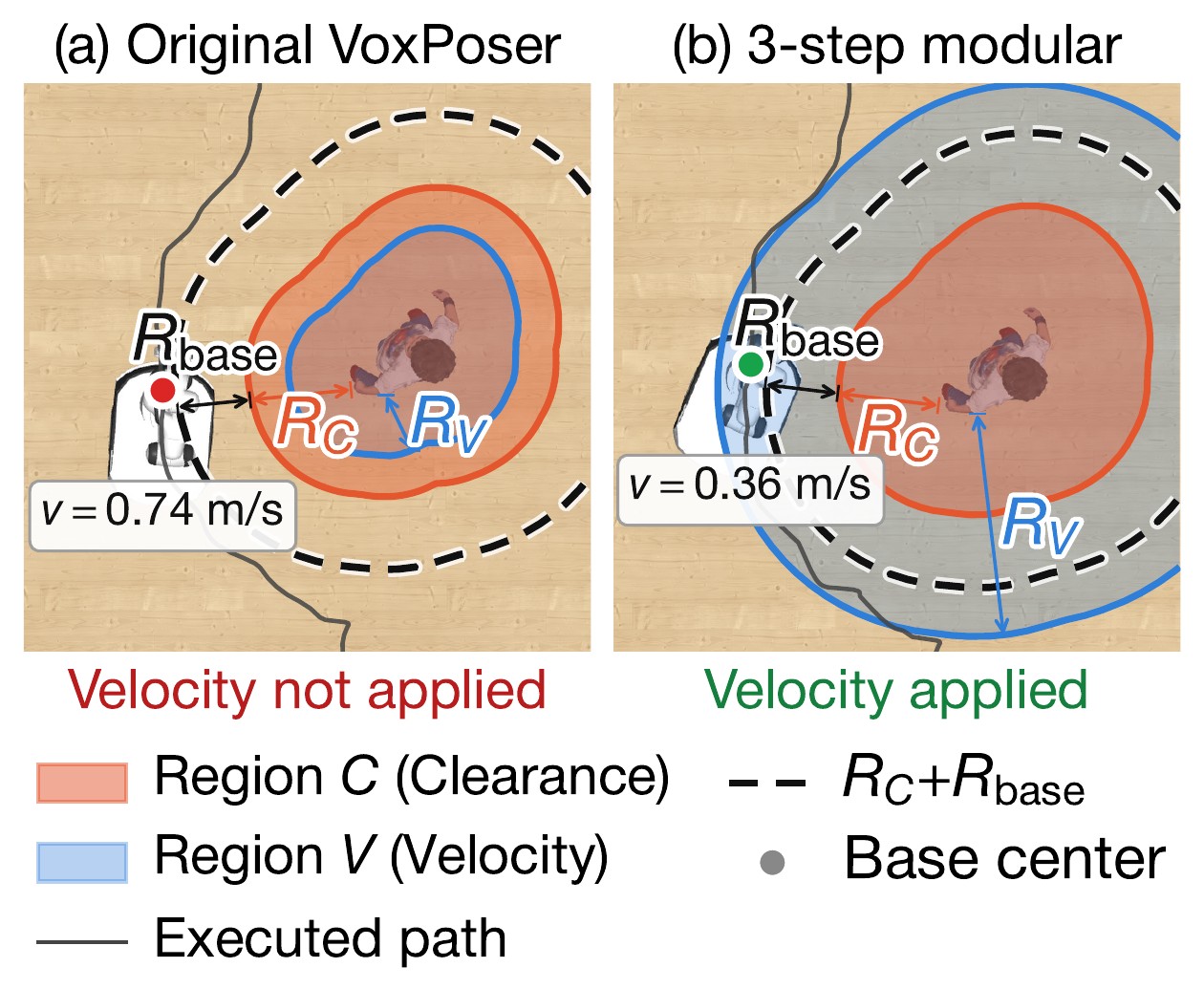

Why Vel. is 0%. The base center cannot get closer to the obstacle than \(R_C + R_\text{base}\) (dashed). If \(R_V\) is smaller, as in (a), the robot never enters the velocity region and the assigned speed never applies. 3-step infers \(R_V\) after \(R_C\); \(R_V \ge R_C + R_\text{base}\) then holds in 59.0% of tasks, as in (b), and a clamp raises the rest to \(R_C + R_\text{base}\) before execution.

RQ3Can external guidance improve VLA safety, and does the backbone retain safety knowledge?

Setup

π_0.5-OpenTau, the VLA with the highest CFSR, single seed. Two kinds of external guidance, with no retraining: prompts c₀–c₄, from the task alone to naming the obstacle and asking for caution, and rollout selection, where a VLM verifier (Qwen3.5-35B-A3B) picks one of K = 4 sampled rollouts. Separately, the VLM backbone of GR00T N1.5 is queried for control values and probed.

Findings

• Prompts do not help. No safety prompt improves CFSR over the task-only c₀ (38.72%), and SSI stays near 0.
• Rollout selection trades one for the other. CFSR rises by 6.72 pp (37.92 → 44.64%) but SSI drops from −0.059 to −0.204; the sampled rollouts differ little (median pairwise distance about 0.10 m).
• The knowledge is in the backbone. GR00T N1.5’s frozen VLM, restored as a text decoder, orders control values by caution (value-level SSI 0.573) while the VLA’s own SSI is negative; a linear probe tells the 18 obstacles apart with 61.7% accuracy.

Condition	TSR ↑	CFSR ↑	SSI ↑
Safety Prompt Guidance
[c0] Task description only	70.88	38.72	+0.011
[c1] c0 + avoidance guidance	71.04	37.92	−0.026
[c2] c1 + Obstacle naming	68.00	38.24	−0.040
[c3] c2 + Caution emphasis	65.92	35.68	+0.026
[c4] c2 + Behavioral instruction	67.04	34.72	−0.048
Rollout Selection under c1
[s0] Baseline (c1)	71.04	37.92	−0.059
[s1] Rollout selection	72.96	44.64	−0.204

π_0.5-OpenTau, single seed. SSI is computed separately over the c₀–c₄ and s₀–s₁ collision-free intersections.

Qualitative results

Avoiding collision does not mean adapting to the obstacle.

Four recorded episodes that follow the RQ1 results. Faded copies of the robot mark where it has been, so its path builds up on the floor; the footer gives the minimum clearance to the obstacle, or marks a collision.

Example episodes from the benchmark runs, replayed from their own recordings; the VLA episodes come from a separate π_0.5-OpenTau run with a 0.6 m goal radius. Clearance is the surface-to-surface distance to the task’s obstacle, from the same episode’s log.

Results library

Same route, same obstacles, different models.

Pick a policy group, a model and a cell. Each clip drives one route three times, with a different obstacle at the same spot, and is shown whatever the outcome.

Seed 0, played at 2× speed, on the cells of the first three videos above. VoxPoser and PIVOT come from the runs of the paper’s tables; the VLA clips come from the π_0.5-OpenTau run above, which recorded only a cardboard box, a cat and a boy. A greyed-out button has no usable recording: two VoxPoser runs on Layout 2, Route E recorded a broken camera view.

Citation

@article{OSMABench,
  title={{Benchmarking Obstacle-Conditioned Safety in Household Robot Navigation}},
  author={Hyunwoong Bae and Jisu Han and Jiyeon Choi and Dohoon Kim and Taesup Moon},
  year={{2026}},
  eprint={{2610.34674}}
}
